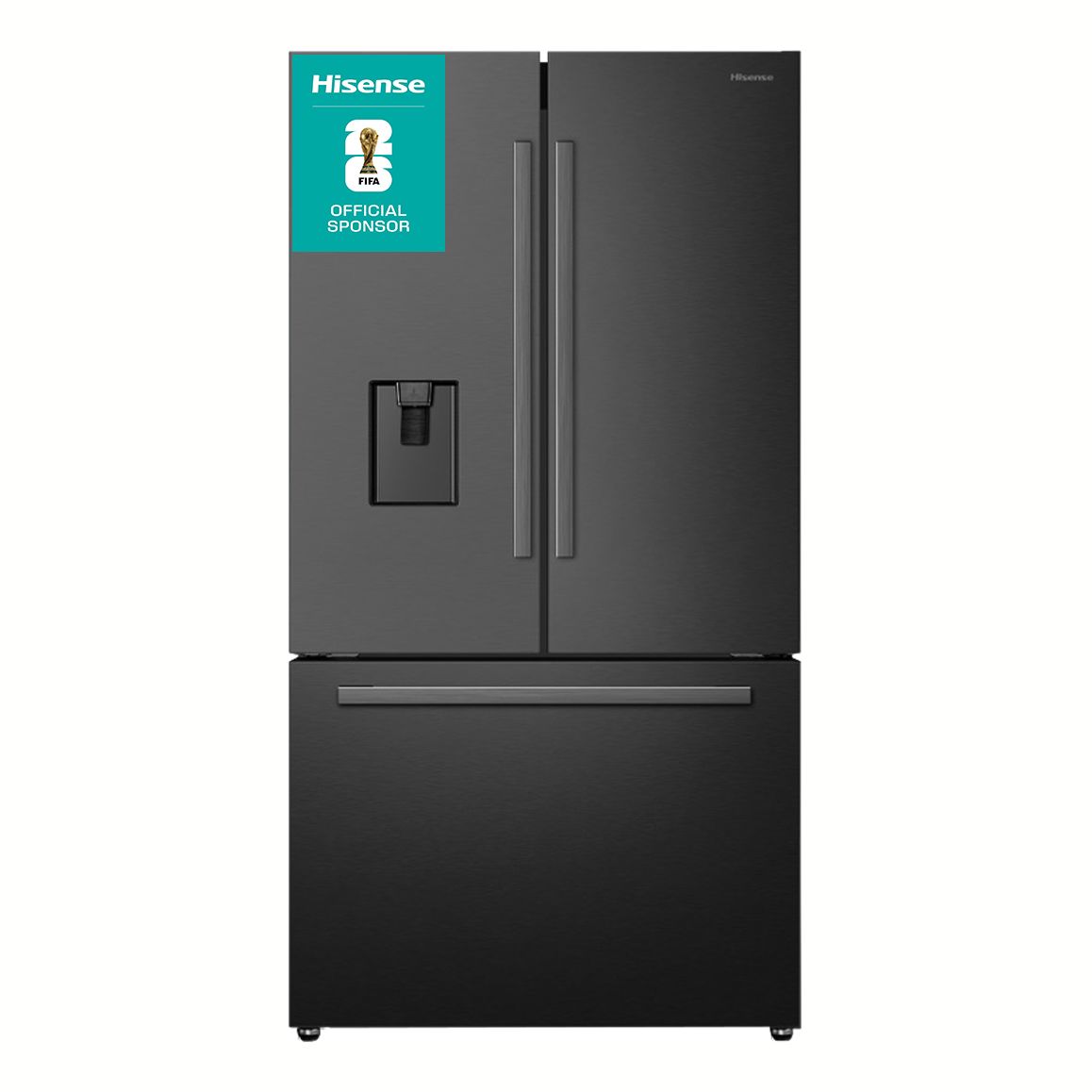

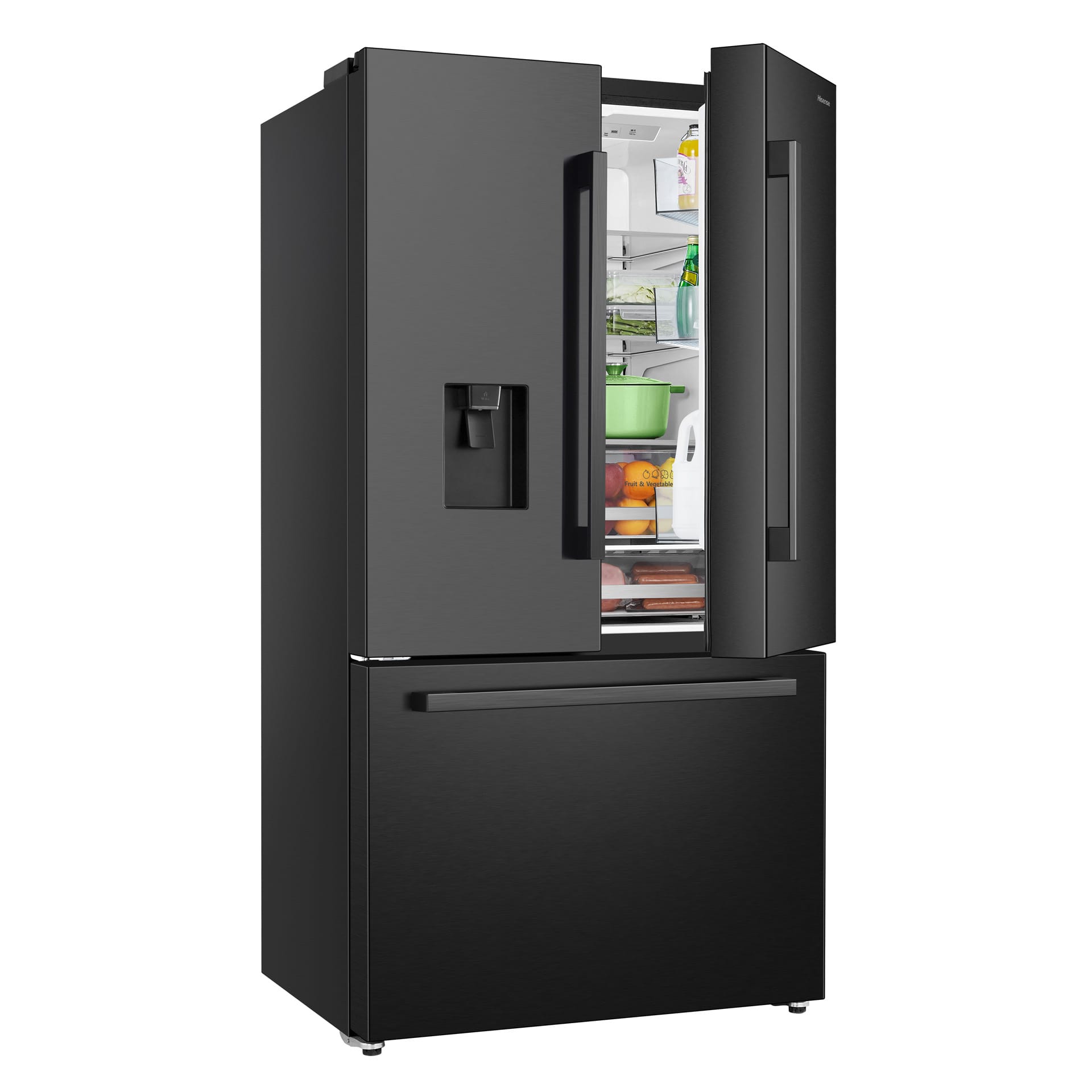

Hisense 575L French Door WD Smart Non-Plumb H760FSB-WD

Manufacturer Model BCD-630W
Hisense Model H760FSB-WD
1. Product identification
Category of household refrigerating appliance model (1) Refrigerator with one or more fresh-food storage compartments. (2) Refrigerator-cellar, Cellar and Wine storage appliance. (3) Refrigerator-chiller and Refrigerator with a 0-star compartment. (4) Refrigerator with a one-star compartment. (5) Refrigerator with a two-star compartment. (6) Refrigerator with a three-star compartment. (7) Refrigeraor-freezer. (8) Upright freezer. (9) Chest freezer. (10) Multi-use and other refrigerating appliances. 7
Description of appliance (Sigle Door,BM,TM,Triple Door,SBS, etc) Triple Door
Type/appliance (Refrigerator, Larder, Freezer,Wine cooler,Beverage cooler) R
FS (free standing) – BI (built-in) – BU (built-under) FS
2. Aesthetics
Door profile ( F = flat / R = rounded / etc…) F
Handle (External/Integrated) External
Colours (White/Silver/SS/Glass/Inox looking) Black
3. Basic features
Voltage / frequency 220~240 / 50Hz
Climate class (SN=10~32°C, N=16~32°C, ST=16~38°C, T=16~43°C) SN/N/ST/T
Foaming components C-P
Certifications CE/CB/GCC
Net capacity l 575
Net capacity fridge compartment (Fridge/Chill) l 435
Net capacity freezer compartment l 140
Energy efficiency class A+
Freezer compartment star rating 4 Star
Energy consumption / year kWh/year 420
Energy consumption (EN153) per 24 h (A/A+) kWh/24 h 1,15
Freezing capacity / 24 hours kg/24 h 9
Max noise level dB(A) 43
Max storage time by power failure Freezer h 18
Kind of coolant / Charge (R134a/R600a) / grammes R / g R600a/57
4. Key features
Defrosting Fridge / Freezer (M=manual A=automatic) A
Control system (E = Electronic / M = Mechanical) E
Frost Free (Fridge/Freezer) Yes
Multi airflow (Fridge/Freezer) Yes
Reversible door No
Huge box Yes
Easy cleaning door seal Yes
Crisper with humidity control function No
Adjustable spill-proof shelves Yes
Tempered glass Yes
LED Light (Fridge/Freezer) Yes/Yes

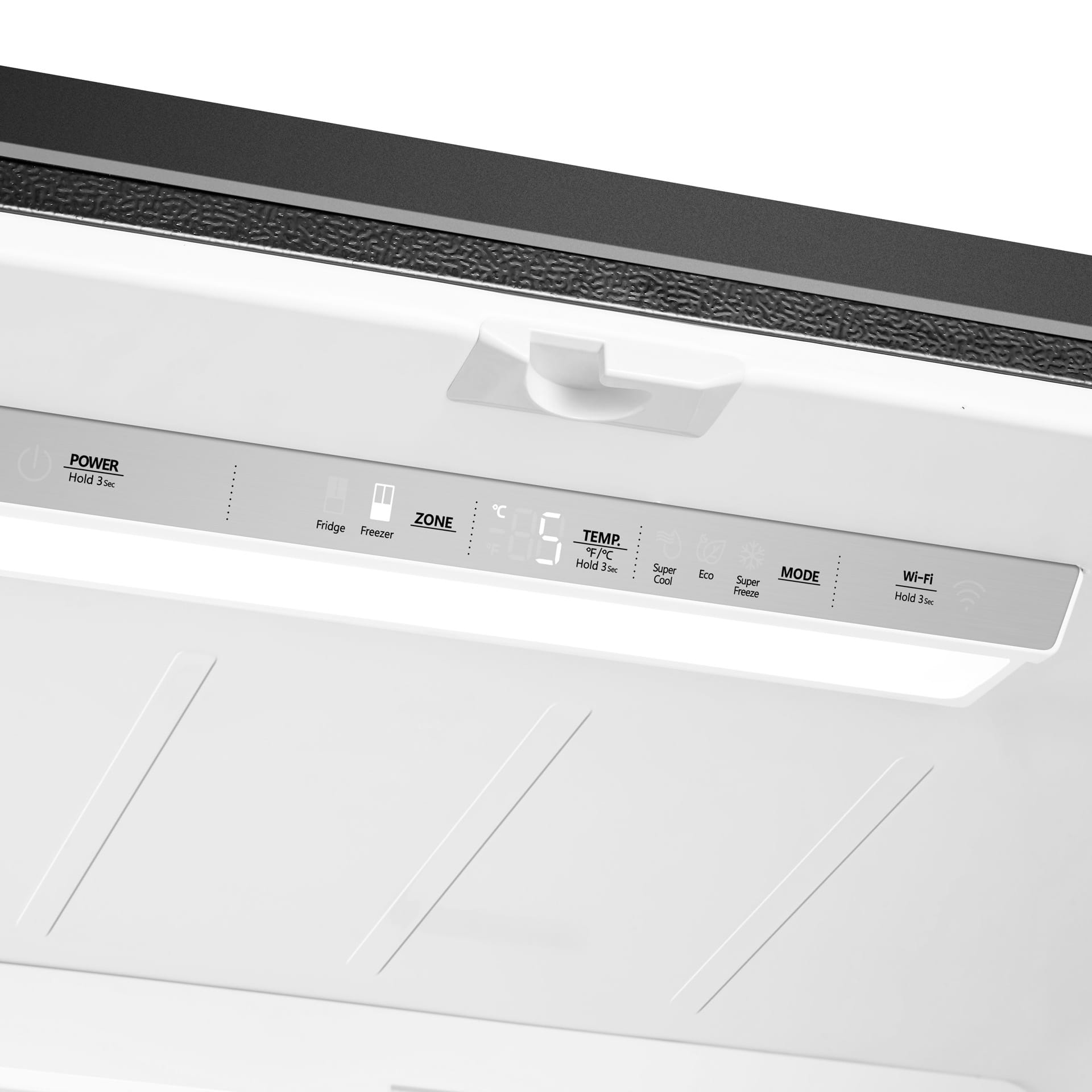

5. Control panel
control display Yes
control display with LED/LCD LED
Temperature range (from>to) ℃ 2℃≤tma≤8℃；
-14≤tf≤-24℃；
Super Cooling (Fridge) YES
Super Freezing (Freezer) YES
Open door alarm (Led Display/ Acoustic) Led Display/ Acoustic
Adjustable thermostat (Y=Yes / N=No) Yes
Holiday No
Eco Yes
Power on/off Yes

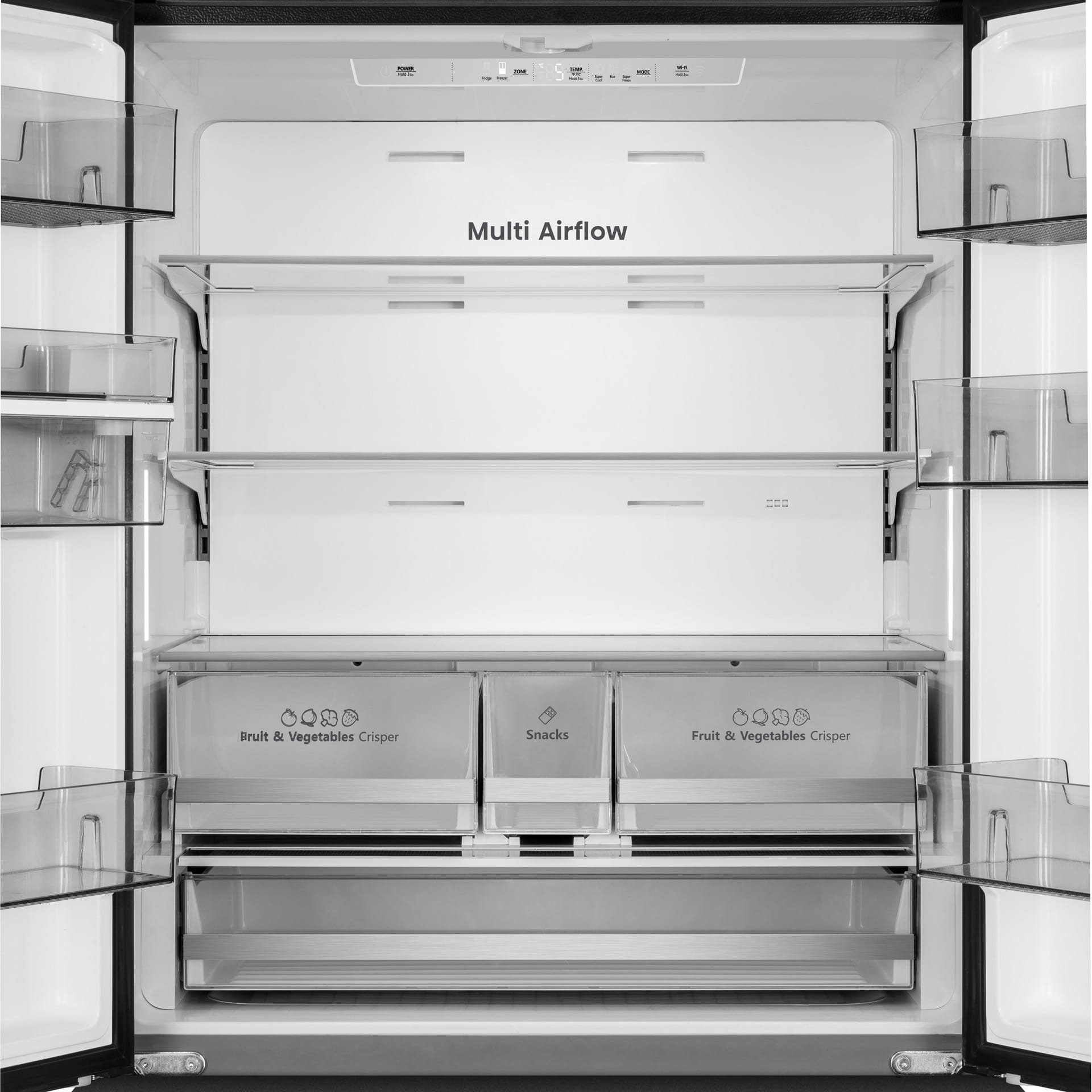

6. Fridge compartment
Shelves:
Number/type 2/glass
Colour (w=white / lb=light blue / g=green / t=transparent. / tk=teak) t
Crisper(s) :
Shelf (on crisper) 2
My fresh choice (call chill compartment too):number/color 1 Full-width fresh drawer in Fridge compartment /transparent
cool fresh room No
vegatable compartment：number/color 2 half-width drawers+1 snack box /transparent
Door:
Storage rack(s) (Total) 3+3
Water tank/L 1
Covered dairy compartment No
bottle holder No
Protection Rod(s) No
Eggs tray(s) / Total number of eggs No
Interior light W LED（9W）
Wine rack nr. / type No

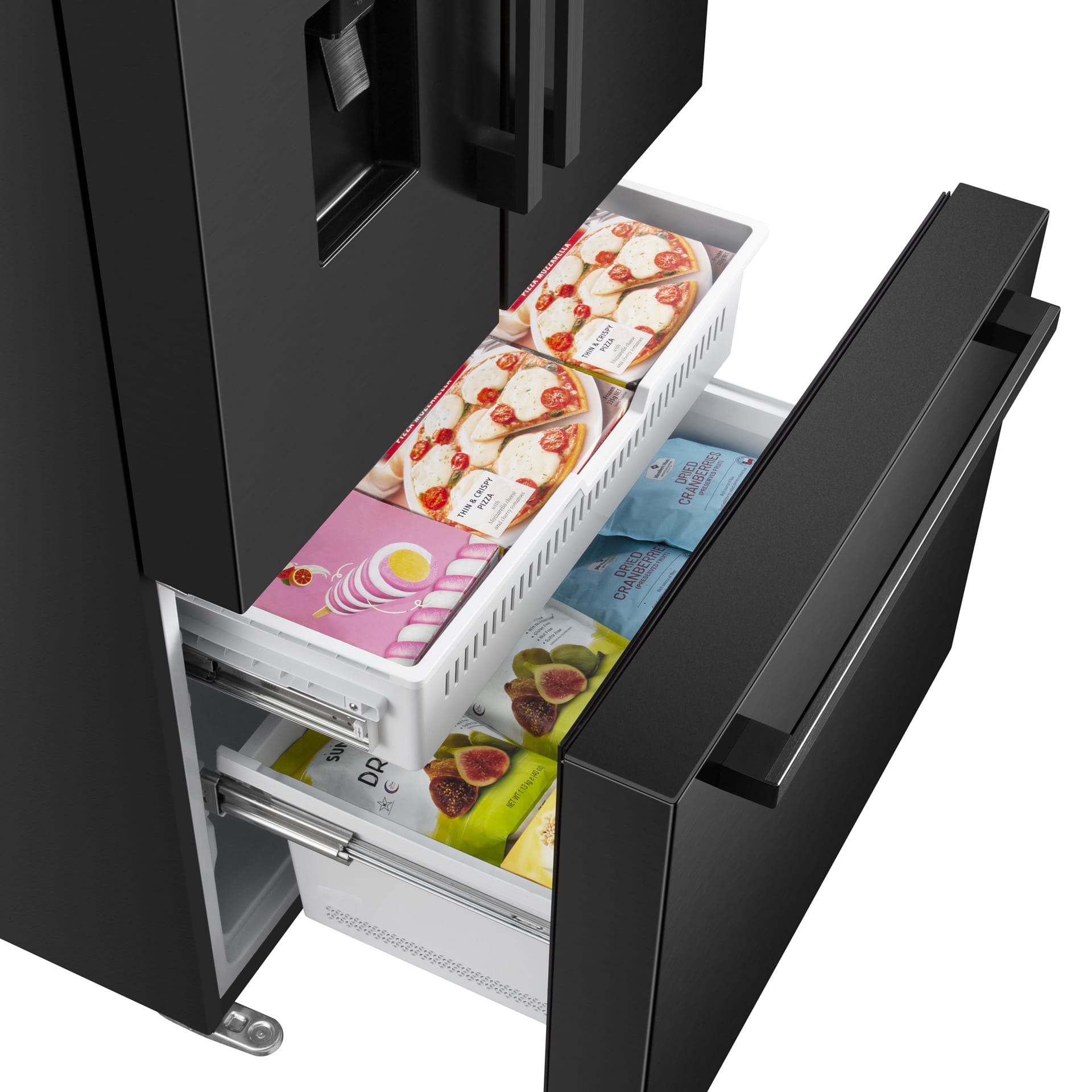

7. Freezer compartment
Drawer(s) 2
Shelves: Number/type No
Easy access trays: Number/type 1
Storage rack(s) on the door (Total) No
Colour of drawer (w=white, t=transp., g=green, gr=gray) W
Ice cube tray(s) No
Interior light W LED（1W)
8. Others
Defrost water outlet YES
Adjustable feet (front / rear) 2 / 0
Castors (front / rear) 2/2
Wall spacer grid or distance holder 1
Lenght of cable/incl. plug cm 200
9. Packing dimensions & loadability
Unit dimensions with Integrated handle or without handle ( W / D / H ) mm 914×725×1785
Unit dimensions with external handle ( W / D / H ) mm 914×776×1785
Packing dimensions (W / D / H) mm 968×778×1891
Depth with open door mm 1082
Net weight kg 115
Gross weight kg 125
20GP/40GP/40HC Container load pcs 48
